GE Gas Turbine — Compressor Assembly Guides

Design and precision manufacture of a complete set of compressor assembly guides for the GE gas turbine, engineered to ensure accurate alignment and safe fit-up of the upper and lower compressor casing halves during overhaul.
Each guide rod is precision-turned and ground to tight diameter and straightness tolerances, with polished tip profiles designed to pilot the casing halves smoothly without risk of scoring the parting-face sealing surfaces.

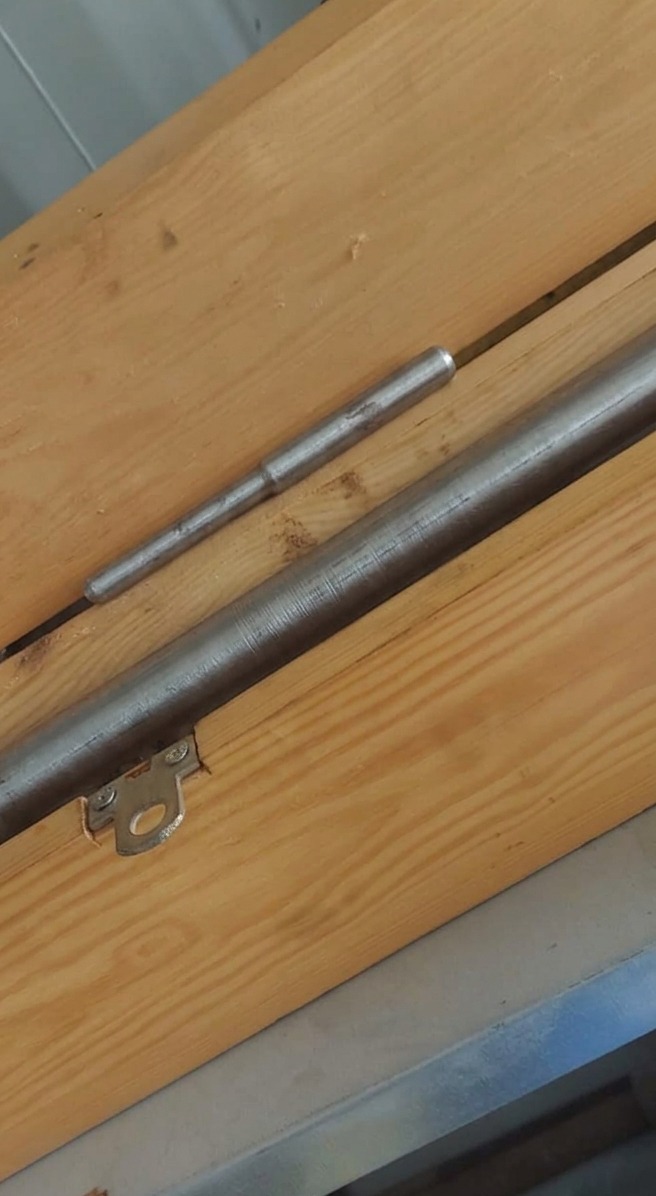

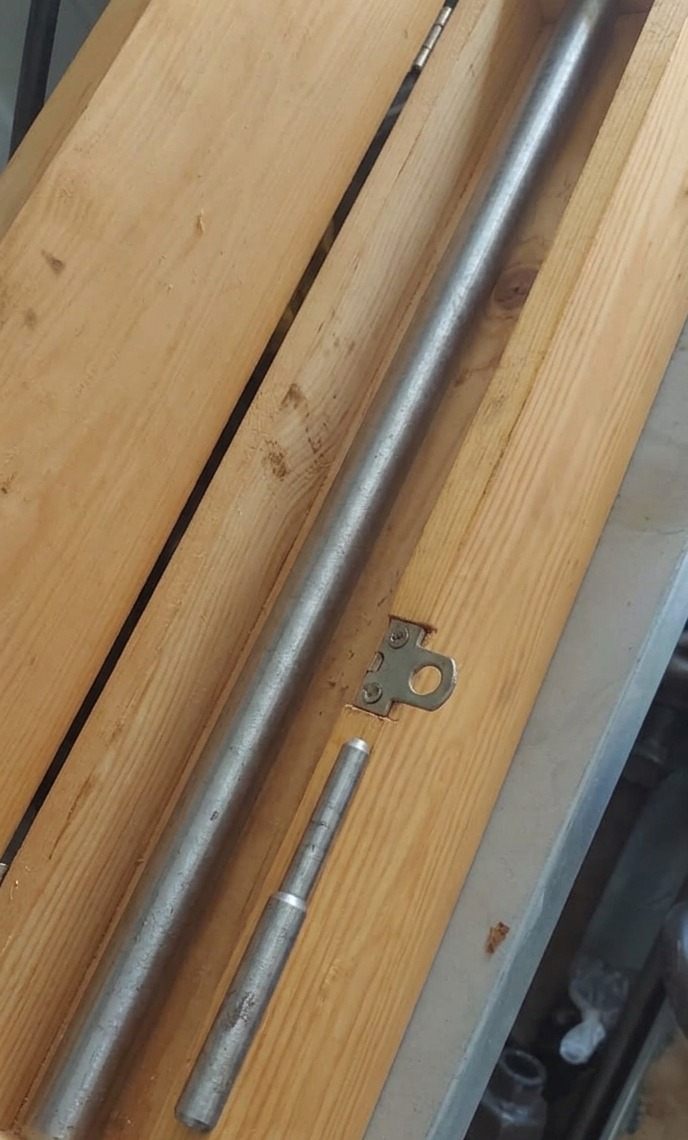

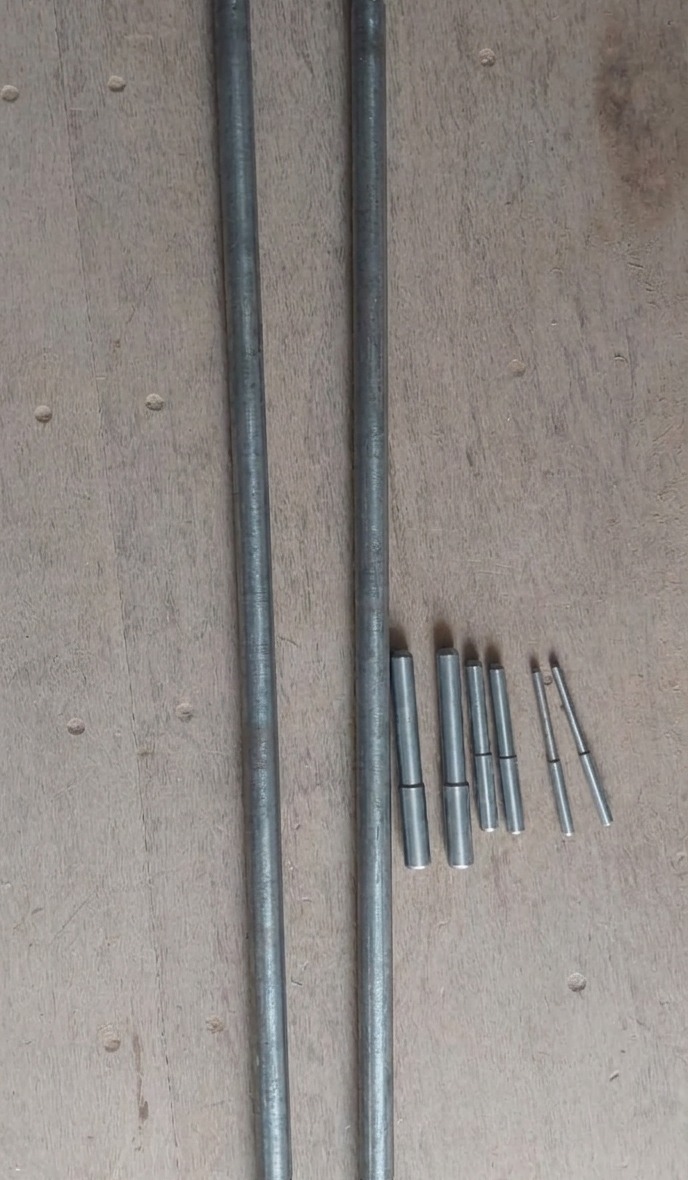

Guide rods supplied in two lengths — long insertion guides for initial engagement and short alignment pins for final positioning — delivered as a complete matched set in a purpose-built wooden storage case.
All components reverse-engineered from OEM reference specimens and verified by dimensional inspection against original drawing tolerances. Material certification provided for all guide rod steel stock.

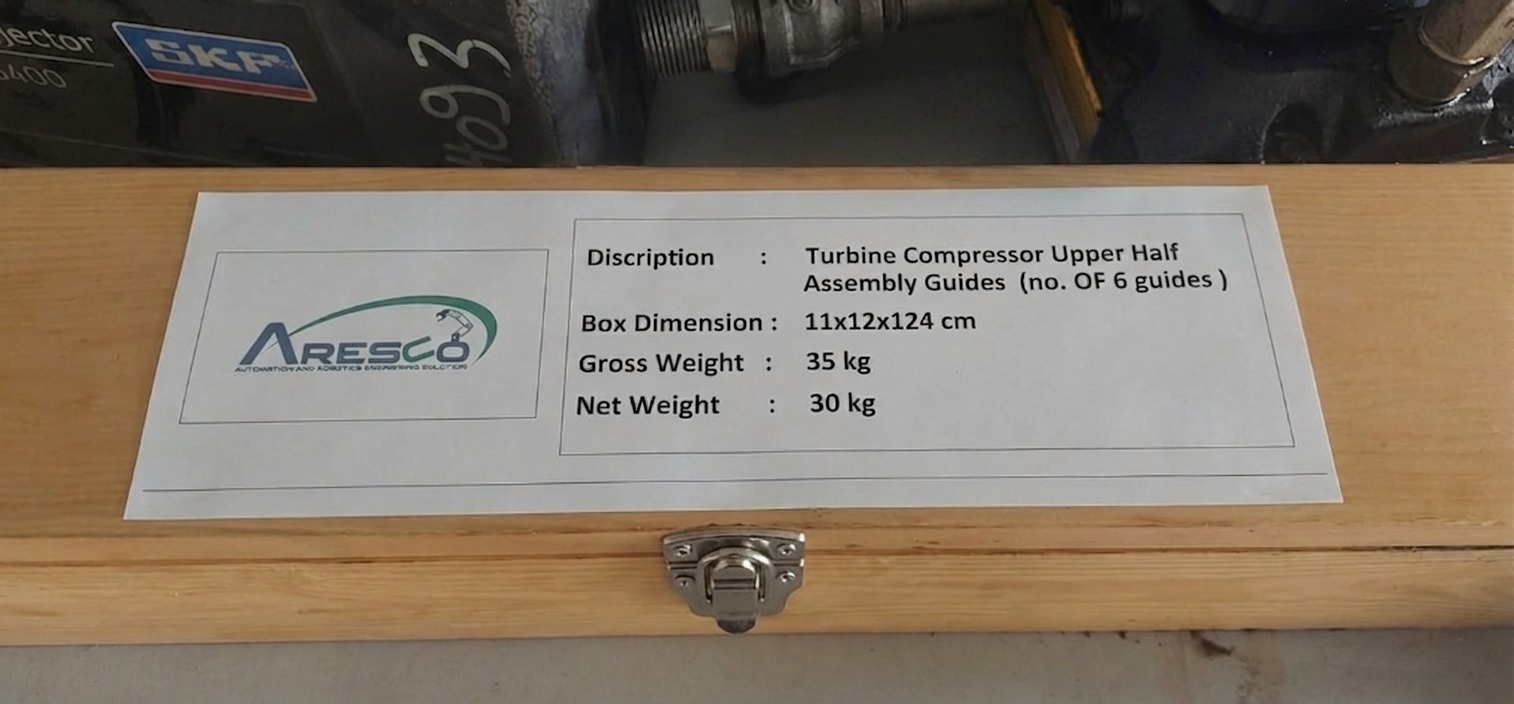

Packaged and labeled per ARESCO quality documentation standards: Turbine Compressor Upper Half Assembly Guides (set of 6). Gross weight 35 kg | Net weight 30 kg | Box dimensions 11 × 12 × 124 cm.
