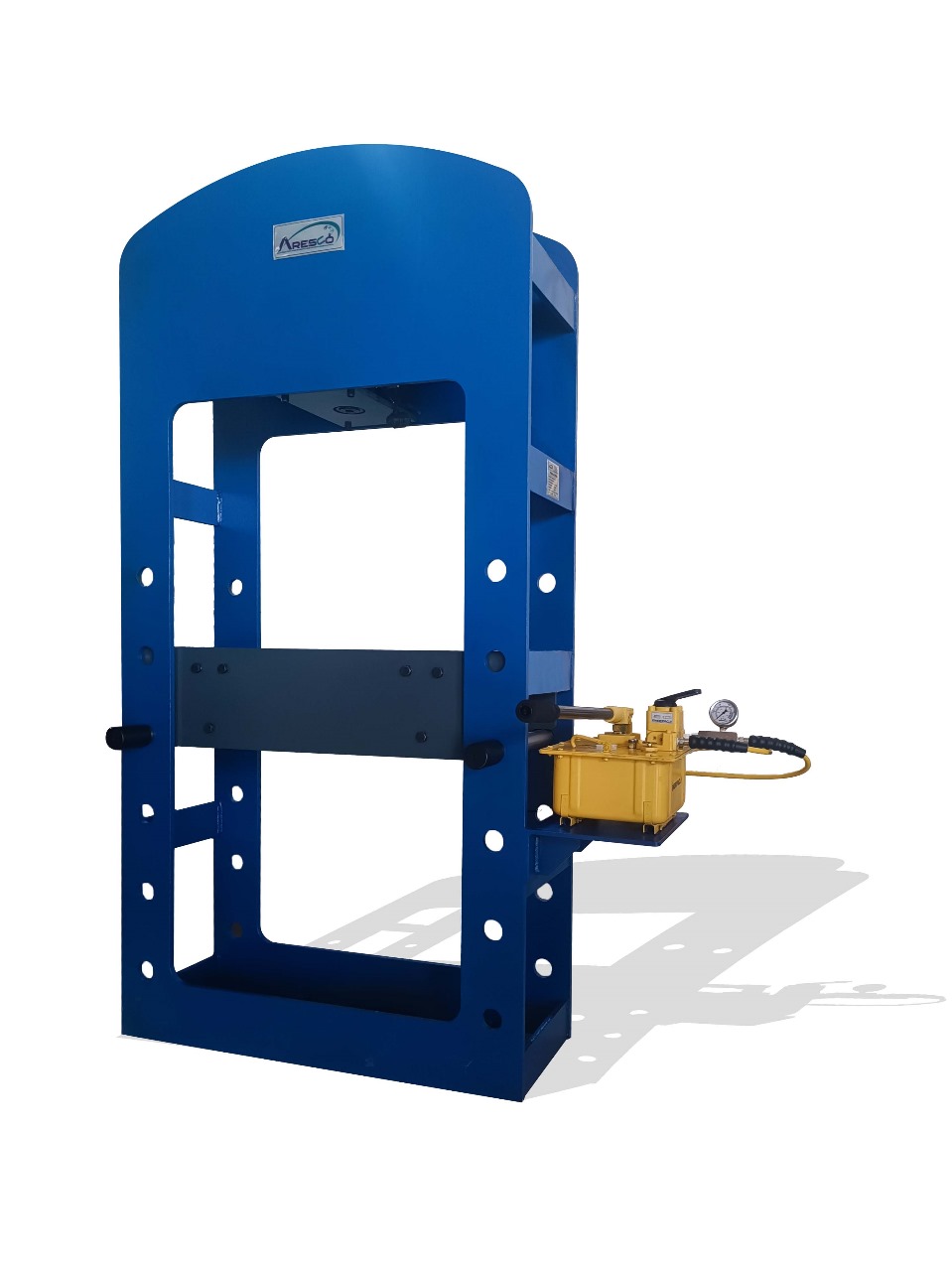

50-Ton Hydraulic Press

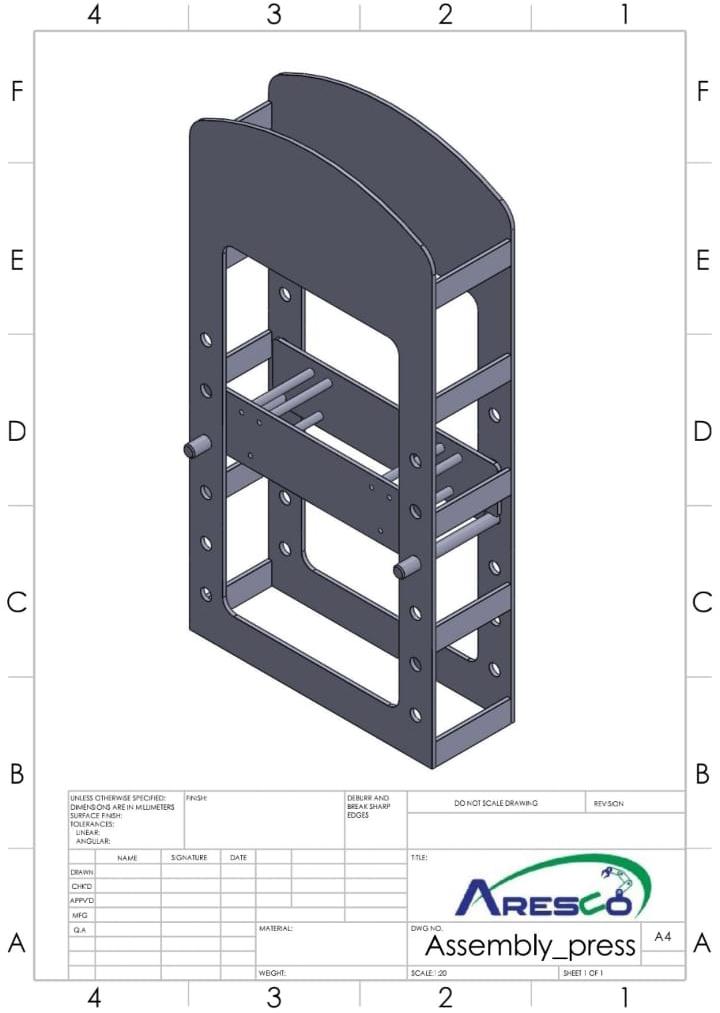

Full in-house design and fabrication of a 50-ton capacity hydraulic press, engineered for precision pressing, straightening, and assembly operations in industrial maintenance and manufacturing environments.

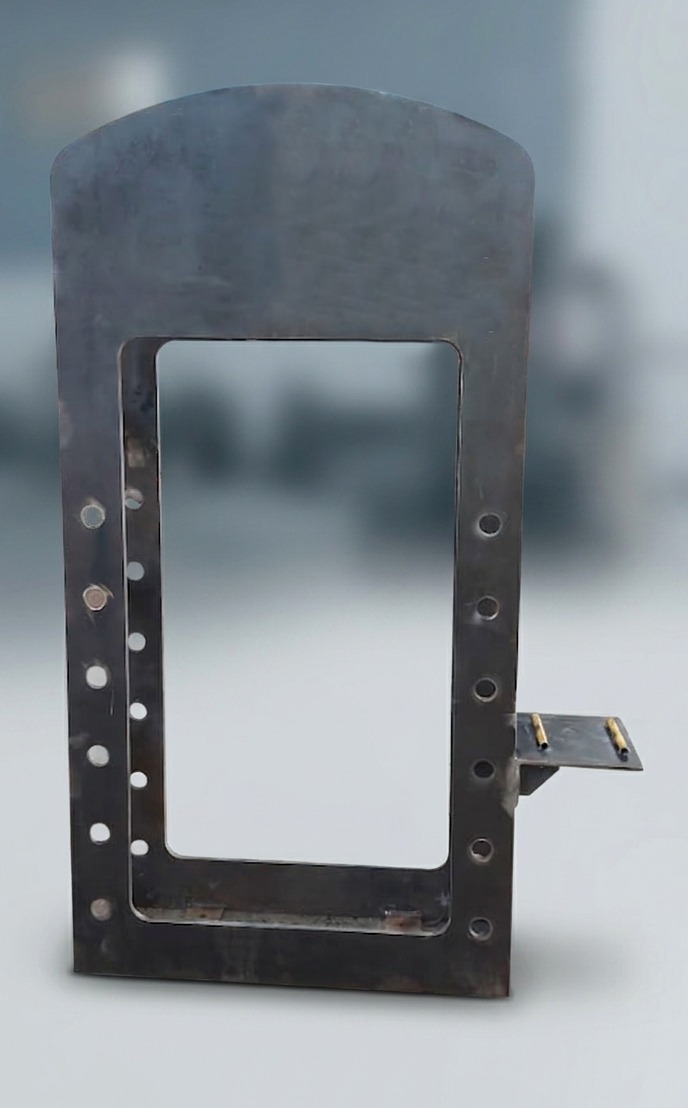

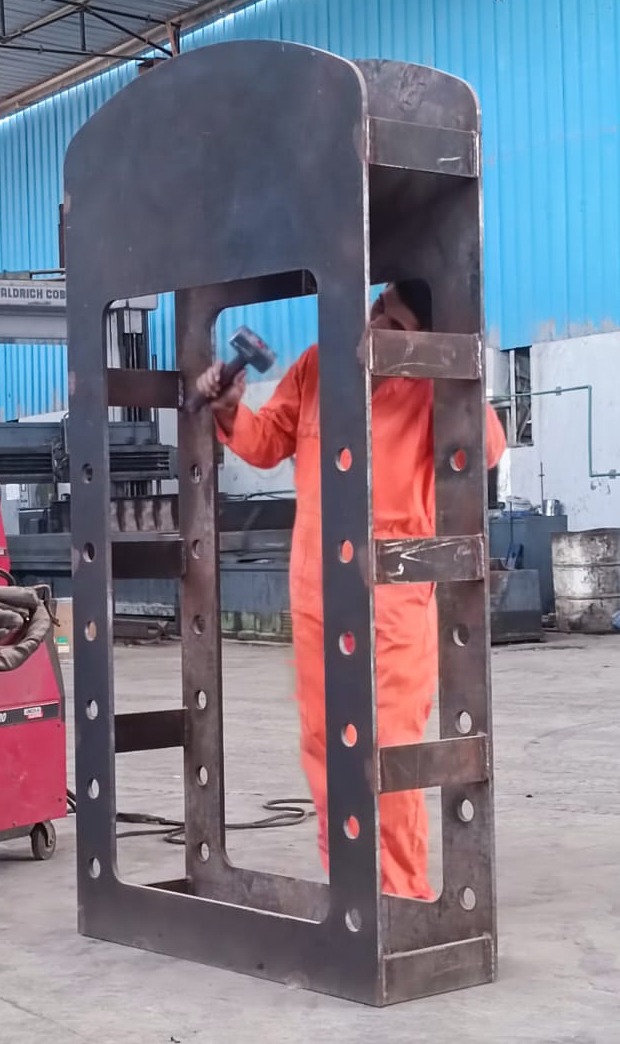

Press frame fabricated from heavy structural steel plate with full-penetration welded joints, stress-relieved post-weld, and precision-machined bearing surfaces to ensure accurate ram guidance and parallelism.
Hydraulic system operates at up to 10,000 psi, powered by a manual pump unit with integrated pressure gauge and remote pendant, delivering precise load control and operator safety.
Adjustable multi-position bed plate allows the working height to be configured across the full stroke range, accommodating a wide variety of workpiece sizes and pressing operations.

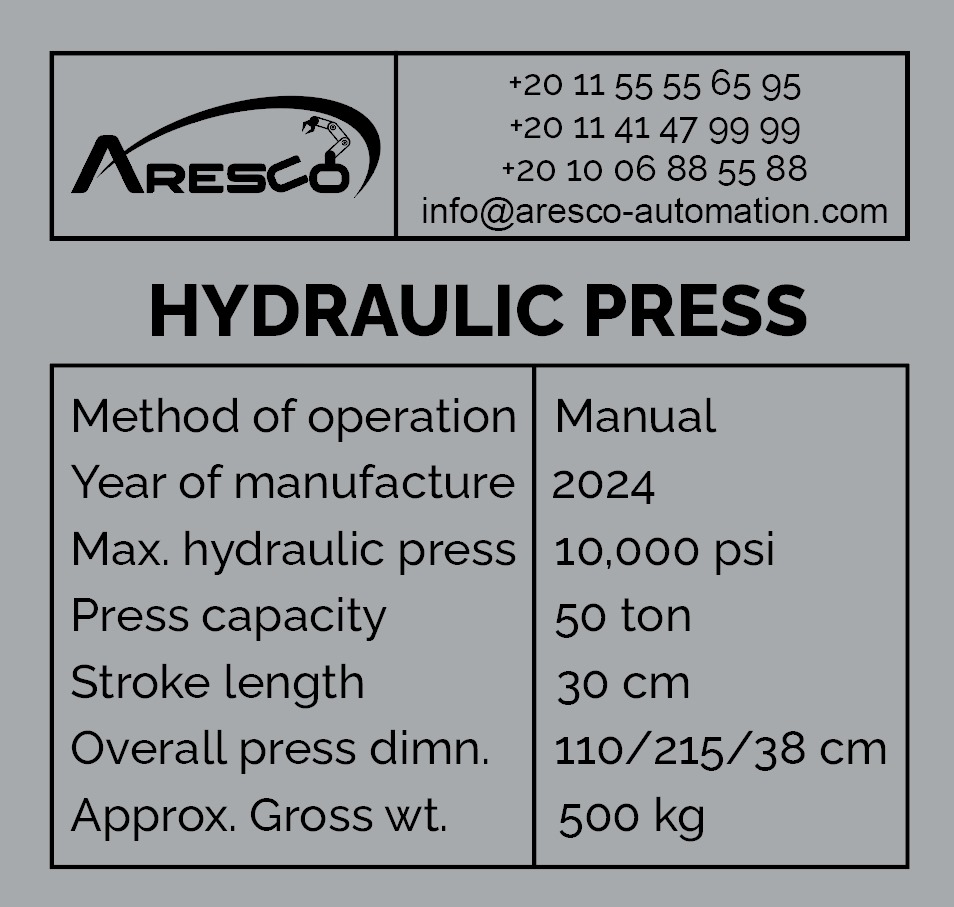

Specifications: 50-ton capacity | 10,000 psi max. hydraulic pressure | 30 cm stroke | Overall dimensions 110 × 215 × 38 cm | Gross weight 500 kg. Delivered with full load test certification.
